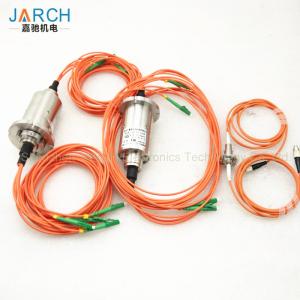

Eight Channels 360° Rotating Multi-Channel Fiber Optic Rotary Joint / FORJ OD:67mm
Feature:
1.Stainless steel housing material
2.Connector type:FC, SC, ST, SMA, or LC available
3.Fiber type:single mode or multi mode
4.8 channels
5.Offer customized slip ring and solution
Quick Details:
| Model Number: | JSR-FO-LX8 | Channnel: | 8 |
| Insertion loss ripple: | <+/-2.0 dB | Wavelength range: | 850-1650 nm |
| Return loss (SM&MM): | >40 dB(RPT), | Insertion loss: | <4.5dB |
| Housing Material: | Stainless Steel | Protection: | IP54/ IP66/IP68 |
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
Description:
JSR-FO-LX8 fibre optic rotary joints are small and compact FORJ with OD 10mm, standard, off-the-shelf, available in stock. It could support 1 channel fiber optics(SM/MM) transmitting on 360° rotating. Single-channel (both Single-Mode and Multiple-Mode) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. features extremely low insertion loss and impressive return loss performance for both single mode and multimode fibers.MJ1 are often used with electronic slip ring, call optical-electrical hybrid slipring, transmit power and high speed data.
Benefits:
- Provides rotary coupling for a multimode or singlemode fiber link
- Passive bidirectional device
- Low cost, small size
- Can be combined with our electrical slips and fluid unions
- Alternative drive coupling and mounting arrangements are available (consult factory for specification details)
- Can be integrated into existing slip ring designs
- Stainless steel construction
- Rugged design
Dimensions:
Specifications:
| Wavelength range | 850-1650 nm | Insertion loss | ≤3.5 dB (typical: <0.5 dB) |
| Insertion loss ripple | <+/-1.0 dB | Return loss (SM) | ≥40 dB |
| Maximum speed | 150 rpm | Pulling strength | 10 N (900 um buffer) |
| Start up torque | <0.01 Nm | Estimated life cycle | 200-400 million revolutions |
| Optical power handling | 23 dBm | Working temperature | -40°C to 85 °C |
| Storage temperature | -50°C to 85 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | Single or multimode w/3 mm jacket (Kevlar/PVC) |
| Connector types | FC, SC, ST, SMA, or LC | Dimensions | 67mm dia. |
| Weight | 2800 g | IP rating | IP54/IP66/IP68 |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Applications:
1.armoured and unarmoured vehicles
2.turbines
3.coherent optical tomography medical systems
4.satellite antennas
5.high-definition vision systems and submarines
Installation Instructions:
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 14 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 15 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
